Fast EV Charger Level 2 Electric Car Charger Lightweight 7kW

Product Categories
Shenzhen Hongju Electronics Co.,Ltd.
Contact Now

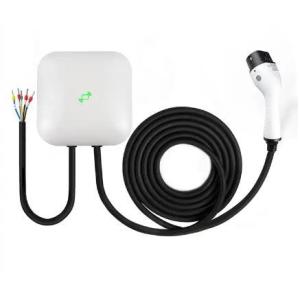

Fast EV Charger Level 2 Electric Car Charger Lightweight 7kW

Brand Name : HONGJU

Model Number : HJ-EV-WA-01

Certification : ETL/FCC/ Energy Star UL(Cable)

Place of Origin : CHINA

MOQ : 500

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 100000PCS Per Month

Delivery Time : 30-40 days

Packaging Details : Each in sponge inner tray, then in paper box, then 2 boxes into 1 master carton

Interface Standard : Type 1

Output Current : 32A

Output Power : 7kW

Input Voltage : AC110-240V

Station size : 180x180x85 (mm)

RCD : type B (30mA AC + 6mA DC)

Contact Now

Fast Electric Car EV Charger Level 2 Electric Car Charging Station EV Charging Station

RCD protection:Type B(30mA AC+6mA DC).Charging status and working error displayed by LED indicators.

TYPE 1 Charger Model & Spec
Model No.
Input Voltage
Power
Rated Current
Certificate
EV-WA-01-7
AC110-240V
7kW
32A
CE, ROHS,UKCA
EV-WA-01-9
AC110-240V
9KW
40A
CE, ROHS,UKCA
EV-WA-01-11
AC110-240V
11KW
48A
CE, ROHS,UKCA
Certificates & QC
CE, UKCA, ROHS
Protection rank
IP55 Cable; IP54 Station
LCD display
without screen & with screen(opt)
RCD
type B (30mA AC + 6mA DC)
Power cord
open ready to wire into electricity
Charging cable
5M Type 1(TPU Jacket)
LED indicator
R/G/B
Start mode
RFID card swipe / APP / Plug and Play(opt)
Station size
180x180x85 (mm)
Warranty
2 years (both cable and station)
lead time
30-35 days after deposit payment
Payment Terms
T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)
Electrical Protection
Over current protection, Residual current protection, Ground protection, Surge protection
Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied
Shell: by thermoplastic PC940. Anti-corrosion and abrasion protection. UV coating
Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark.
Customizing Logo
Logo put on shell by laser on station box or cable head
Package
Each in inner carton box with blister inner tray, then 2 inner cartons into 1 master carton
Features
Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019
IP55, Weather proof; Leakage current protection; Impact resistance
Charging status and working error simply displayed by LED indicators and LCD screen

Fast EV Charger Level 2 Electric Car Charger Lightweight 7kW

Fast EV Charger Level 2 Electric Car Charger Lightweight 7kW

How to make Order

Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
